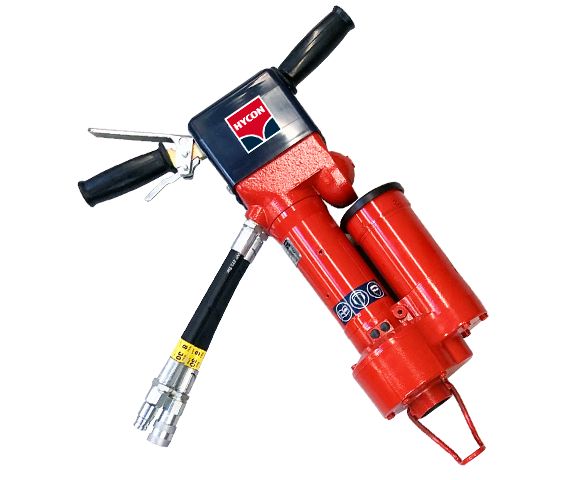

Hycon HRD30
Handheld Rock Drill

Hycon HRD30
Handheld Rock Drill

A New high performing hydraulic only driven handheld Rock Drill with integrated airflushing compressor. Unique new design with build-in oilmotor for drill rotation and fast speed rotation of integrated vane- compressor is the result of 2 year product development and intensive testing internal and with selected customer.

The new Hycon HRD30 Rock Drill only needing a 30 lpm oil supply can be operated from any hydraulic power take-out or Hycons compact HPP13 Flex pack making it the optimum, compact and very portable drilling solution where needs are for 25-50mm holes in granite or hard concrete.

Compact in size the HRD30 perform in line with (or better) larger pneumatic type drills where costly and large compressors will make it difficult to get and transport to jobsites.

Version
HRD30GET QUOTE
Technical data
Weight, kg29
Oil flow, l.p.m.30
Working pressure, bar130
Max. pressure, bar172
Drill steel shank size, mm hex22x108
Rotation (Clockwise), r.p.m.320
Blow frequency, Hz40
Air Flushing, m³/h10
Get quote
